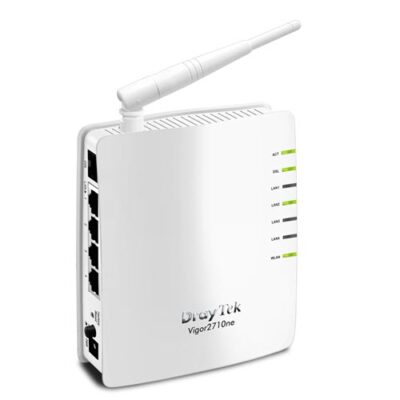

Draytek Vigor 2710ne ADSL2+ modem router

49.95 incl. 21% BTW

Het instapmodel van de DrayTek ADSL2/2+ modem/router serie is de zeer complete en gebruiksvriendelijk Vigor 2710 serie. De strak vormgegeven modellen beschikken over features als VPN, object based firewall en een multifunctionele USB poort.



  • ADSL2/2+ poort
  • 2 simultane VPN tunnels
  • Ingebouwde object oriented firewall
  • USB poort voor 3,5G modem, printer en storage
Hardware Interface 4 x 10/100M LAN Switch , RJ-45
1 x ADSL2/2+ Port, RJ-11
1 x FXS, RJ-11 (VDn-model) 2x FXS, RJ-11 (Vn-model)
1 x Line, RJ-11 (V-modellen)
3 x Detachable Antenna (n-modellen)
1 x Factory Reset Button
1 x Wireless on/off Button (n-modellen)
1 x WPS Button (n-modellen)
1 x USB Host 2.0
ADSL Compliant ANSI T1.413 Issue 2
ITU-T G.992.1 G.dmt
ITU-T G.992.3 ADSL2 G.dmt.bis
ITU-T G.992.5 ADSL2+
Annex L (READSL )
Annex M
ATM Protocol RFC2684 MPoA (Multiple Protocol over AAL5)
RFC2516 PPPoE (PPP over Ethernet)
RFC2364 PPPoA (PPP over AAL5)
PPPoE Pass-through from LAN/WLAN
Transparent Bridge for MPoA
VoIP (V-modellen) Protocol : SIP, RTP/RTCP
6 SIP Registrars
Automatic Gain Control
Jitter Buffer (180ms)
Codec Features G.711 A / µ Law
G.723.1
G.726
G.729 A/B
VAD / CNG
G.168 LIne Echo-cancellation
iLBC *
DTMF Relay In Band
Out Band (RFC-2833)
SIP Info
Supplemental Services Call Hold / Retrieve
Call Waiting
Call Waiting with Caller ID
Call Transfer
Call Forwarding (Always. Busy and No Answer)
DND (Do Not Disturb)
Call Barring (Incoming / Outgoing)
MWI (Message Waiting Indicator ) (RFC-3842)
Hotline
DECT (D-modellen) Pairing up to 6 Handsets
Simultaneous Active 4 Calls
GAP / CAT-iq * Compliance
Paging Function
Wireless Access Point
(2.4GHZ) (n-modellen)
IEEE802.11n Compliant
Wireless Client List
Access Point Discovery
WDS (Wireless Distribution System)
Wireless LAN Isolation
Wireless Rate Control
64/128-bit WEP
WPA/WPA2
MAC Address Access Control
WPS
Hidden SSID
WMM (Wi-Fi Multimedia)
VPN
(Specific regional variants only)
2 Concurrent VPN Tunnels
Protocol : PPP, IPSec, L2TP, L2TP over IPSec
Encryption : AES, MPPE and DES / 3DES
Authentication : MD5, SHA-1
IKE Authentication : Pre-shared Key and Digital Signature (X.509)
LAN-to-LAN, Teleworker-to-LAN
DHCP over IPSec
Dead Peer Detection (DPD)
VPN Pass-through
Firewall Multi-NAT, DMZ Host, Port-Redirection and Open Port
Object-based Firewall
MAC Address Filter
SPI (Stateful Packet Inspection)
DoS / DDoS Prevention
IP Address Anti-spoofing
E-mail Alert and Logging via Syslog
Bind IP to MAC Address
Time Schedule Control
CMS IM / P2P Applications Blocking
URL Keyword Filter (Whitelist and Blacklist)
GlobalView Web Content Filter ( Powered by Commtouch )
Bandwidth Management QoS
(Specific regional variants only)
Guarantee Bandwidth for VoIP
Class-based Bandwidth Guarantee by User-defined Traffic Categories
DiffServ Code Point Classifying
4-level Priority for Each Direction (Inbound/Outbound)
Bandwidth Borrowed
Bandwidth / Session Limitation
Network Feature IGMP Proxy / Snooping
DHCP Client / Relay / Server
Dynamic DNS
NTP Client
Call Scheduling
RADIUS Client
DNS Cache / Proxy
UPnP
Routing Protocol Static Routing
RIP V2
USB 3.5G USB Modem as 2nd WAN (Specific regional variants only)
Printer Sharing
File System
(throughput with above 2Mbps)
Support FAT32/FAT16 File System
Support FTP Function for File Sharing
Support samba for Windows File Sharing
Network Management Web-based User Interface (HTTP / HTTPS)
Quick Start Wizard
CLI (Command Line Interface, Telnet / SSH)
Administration Access Control
Configuration Backup / Restore
Built-in Diagnostic Function
Firmware Upgrade via TFTP/FTP/WUI/TR-069
Logging via Syslog
SNMP Management MIB-II
Management Session Timeout
TR-069
2 Level Management
Temperature Operating : 0°C ~ 45°C
Storage : -25°C ~ 70°C
Humidity 10% ~ 90% (non-condensing)
Max. Power 10 Watt
Dimension L216.4 * W147.8 * H53.5 (mm)
Power DC 12V
* Firmware upgradeable
